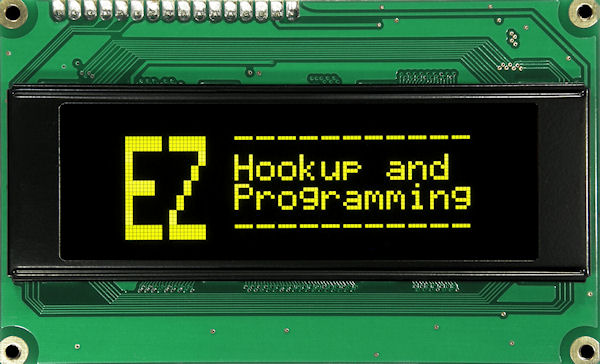

GLO-416Y 4x16 Multifont Serial OLEDs
GLO-416Y displays receive serial data at 9600bps and display it on a bright, high-contrast OLED screen in a range of six font sizes. With this display we've implemented just about every serial-display user's wishlist: high brightness/contrast, wide operating temp range, low power consumption, multiple font sizes, compact footprint and low cost. Looking for a smaller display with similar features? See GLO-216Y/G.
GLO-416 Features
- Brilliant OLED (organic LED) display
- Fits standard 98x60mm LCD footprint (i.e., std 4x20 size)
- Six font sizes from regular 4x16 to huge 1x4 characters
- Accepts normal inverted serial or UART-direct noninverted
- EEPROM storage of startup screen, 16 custom characters
- Uses a superset of our terminal-style instruction set (BPP, ILM, etc.)
- Deep inventory for no-lead-time delivery
Basic Specifications
| Power Requirements | 4.8 to 5.3Vdc at 50mA (60mA max) |
|---|---|
| User Connector | 5-pin header, 0.025in. posts on 0.10in. centers |
| Connector Pinout | +5V Gnd Serial Gnd +5V |
| Serial Input | 9600bps inverted or non-inverted, jumper configurable |
| Operating Temperature | -40° to 80° C |
| Display Type | Organic LED (OLED), yellow |
Dimensions (in mm)
Total depth (front of screen to highest point on pcb) is 16mm.
| A | y offset edge to hole center (top & bottom) | 2.50 |
|---|---|---|
| B | y pcb height | 60.00 |
| C | y hole spacing | 55.00 |
| D | y screen opening | 25.20 |
| E1 | y character height (4-line fonts) | 4.20 |
| E2 | y character height (2-line fonts) | 8.40 |
| E3 | y character height (1-line fonts) | 16.8 |
| E4 | y character height (7-seg*) | 19.1 |
| F1 | x character width (16-character fonts) | 2.95 |
| F2 | x character width (8-character fonts) | 5.90 |
| F3 | x character width (4-character fonts) | 11.8 |
| G | x offset pcb edge to hole center | 2.50 |
| H | x screen frame | 94.00 |
| I | x screen opening | 77.00 |
| J | x hole spacing | 93.00 |
| K | x pcb width | 98.00 |
| L | y frame height | 32.00 |
| - | mounting hole diameter | 2.50 |
| - | screen frame depth | 4.7 |
| *Large numbers (1x4 and 1x8) can be displayed in 7-segment style, maximizing their overall size (32 pixels tall). Optionally, they can be displayed in the same proportions as large text, 28 pixels tall. | ||
OLED Instructions
GLO-416 works like a mini-terminal, displaying text and responding to traditional control characters like linefeeds, carriage returns, tabs, etc. via a superset of the instructions used by our other advanced displays (BPP, ILM, VFD, SGX). GLO also offers six font sizes, and EEPROM memory for a startup screen and custom characters.
Control codes not listed below are ignored.
| Instruction (ctrl code) | ASCII | Hex |
|---|---|---|
| Home cursor (ctrl-A) | 1 | 0x01 |
| Select font 1→2→3→4→5→6→1→... (ctrl-B) | 2 | 0x02 |
| Set font to normal, default 4x16 size (ctrl-C) | 3 | 0x03 |
| Backspace (ctrl-H) | 8 | 0x08 |
| Tab: jump to next multiple-of-4 column (ctrl-I) | 9 | 0x09 |
| Smart linefeed: move down one row (ctrl-J) | 10 | 0x0A |
| Vertical tab: move up one row (ctrl-K) | 11 | 0x0B |
| Formfeed: clear the screen (ctrl-L) | 12 | 0x0C |
| Carriage return: move to start of next line (ctrl-M) | 13 | 0x0D |
| Turn OLED driver on (ctrl-N) | 14 | 0x0E |
| Turn OLED driver off to save power (ctrl-O) | 15 | 0x0F |
| Accept cursor-position data (next byte) (ctrl-P) | 16 | 0x10 |
| Accept right-alignment data (ctrl-R) | 18 | 0x12 |
| Set 7-segment (tallest) big numbers (ctrl-S) | 19 | 0x13 |
| Set text-style big numbers (ctrl-T) | 20 | 0x14 |
| Escape character: begin multipart instruction | 27 | 0x1B |
| ESC D n B0-B7 defines custom character n with bit patterns from bytes B0-B7. ESC d n B0-B7 defines custom character n+8 with bit patterns from bytes B0-B7. ESC E 0 recalls saved text from EEPROM. ESC e 0 recalls saved custom-character set from EEPROM. ESC X 0 stores text received since last clear-screen (including instructions) to EEPROM. ESC x 0 stores current custom-character set to EEPROM. |
||
Accessories
- BEZ-416G mounting kit with custom Lexan faceplate, hardware
- BSW-CBL wiring harness, 12" power, ground and serial wires to breadboard pins
- PDI-CBL wiring harness, HD-style power connector, DE-9 female for PC internal hookup
- PDX-CBL wiring harness, power, ground wires and DE-9 female for PC external hookup
